Thinkpower

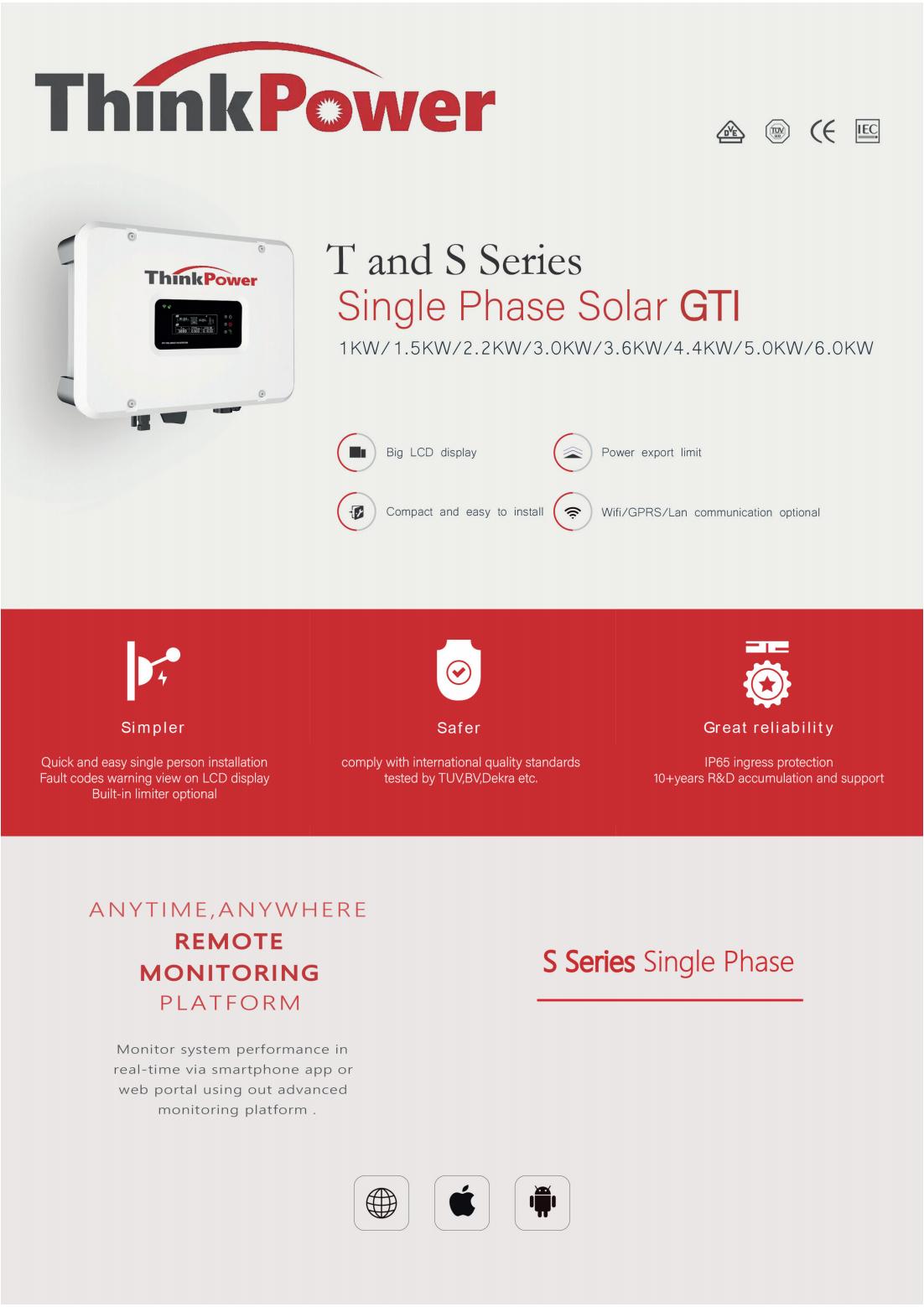

Thinkpower is a professional solar inverter manufacturer with 14 years R&D, T and S series 1kw-6kw inverter is for Tunisia market, compact residential solar grid connected inverter specifically designed to bring comfort and enjoyment as well as high efficiency to households. It is advantageously with clear display view from the big LCD screen, easy remote settings, easy graphics operations on app and web, communications by WIFI, P2P, LAN, GPRS, RS485.
-
Load consumption monitoring
-
IP65 protection
-
Power export limit
-
Big LCD display
Users can check 24-hour load consumption enabled Thinkpower monitoring solution . And built-in anti-backflow limit is available to controlexport power
-
24hours loads consumption monitoring
-
Power export limit

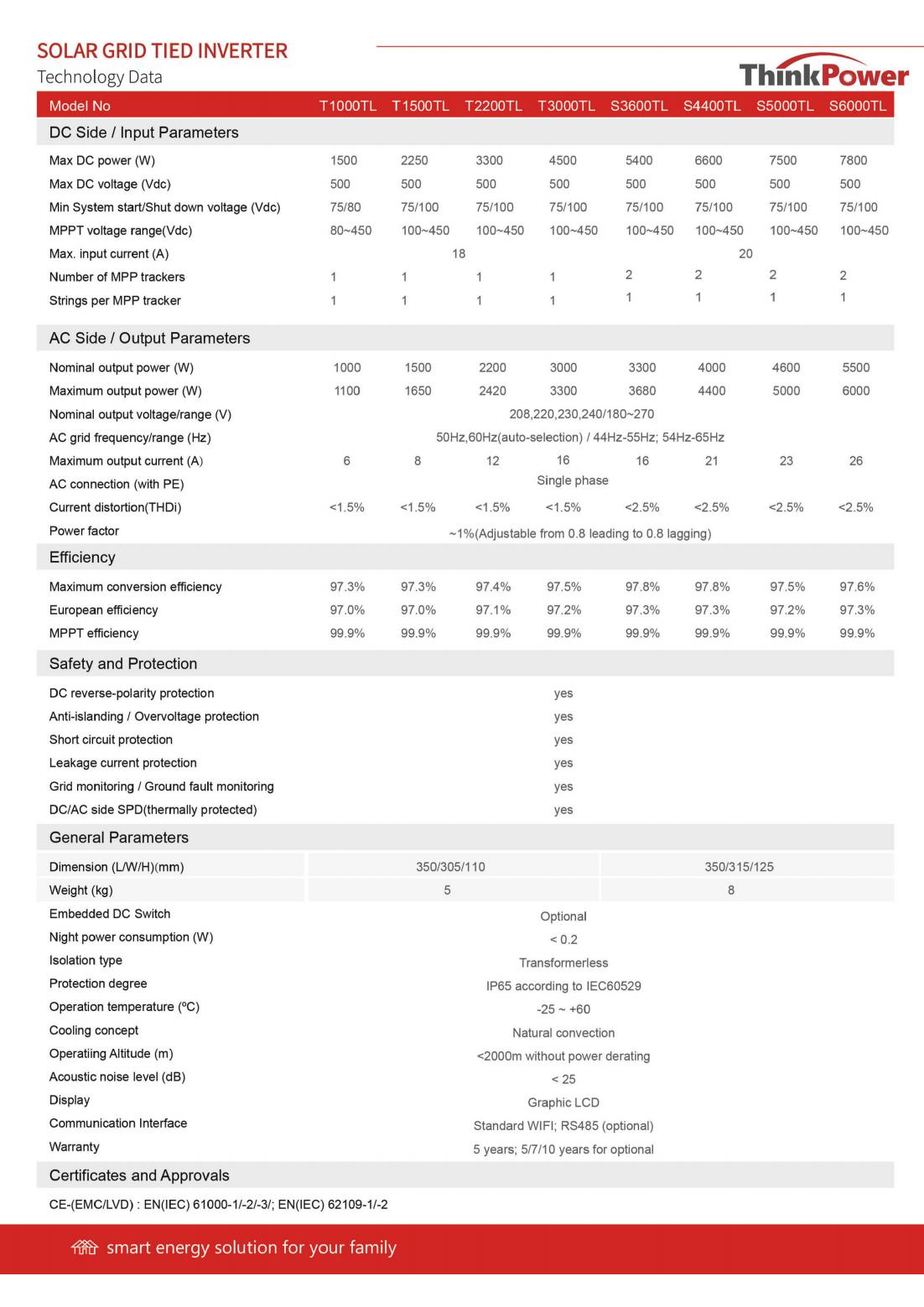

Model No T1000TL T1500TL T2200TL
Input(DC)
Max DC power (W) 1500W 2250W 3300W
Max DC voltage (V) 500 500 500
Min start voltage (V) 75/80 75/100 75/100
MPPT voltage range(V) 80~450 100~450 100~450
Max. input current (A) 18A
Number of MPP trackers 1
Strings per MPP tracker 1
Nominal output power 1000W 1500W 2200W
Max. output power (W) 1100W 1650W 2420W
Nominal output voltage(V) 208,220,230,240/180~270
AC grid frequency/range (Hz) 50Hz,60Hz(auto-selection)
/ 44Hz-55Hz; 54Hz-65Hz
Max. output current(A) 6 8 12
Model No T3000TL S3600TL S4400TL
Input(DC)
Max DC power (W) 4500W 5400W 6600W
Max DC voltage (V) 500 500 500
Min start voltage (V) 75/100 75/100 75/100
MPPT voltage range(V) 100~450 100~450 100~450
Max. input current (A) 18A 22A 22A/22A
Number of MPP trackers 1 2 2
Strings per MPP tracker 1
Nominal output power 3000W 3600W 4000W
Max. output power (W) 3300W 3960W 4400W
Nominal output voltage/range (V) 208,220,230,240/180~270
AC grid frequency/range (Hz) 50Hz,60Hz(auto-selection)
/ 44Hz-55Hz; 54Hz-65Hz
Max. output current(A) 16 16 21
Model No S5000TL S6000TL
Input(DC)
Max DC power (W) 7500W 7500W
Max DC voltage (V) 500 500
Min start voltage (V) 75/100 75/100
MPPT voltage range(V) 100~450 100~450
Max. input current (A) 22A/22A 22A/22A
Number of MPP trackers 2
Strings per MPP tracker 1
Nominal output power 5000W 6000W
Max. output power (W) 5500W 6600W
Nominal output voltage/range (V) 208,220,230,240/180~270
AC grid frequency/range (Hz) 50Hz,60Hz(auto-selection)
/ 44Hz-55Hz; 54Hz-65Hz
Max. output current(A) 23 26
