products Thinkpower
S S1000-10000TL_

Thinkpower Single Phase S series 6kw-10kw

Sinlge Phase Solar GTI

Thinkpower is a professional solar inverter manufacturer with 14 years R&D, S series 1kw-10kw inverter is a compact residential solar grid connected inverter specifically designed to bring comfort and enjoyment as well as high efficiency to households. It is advantageously with clear display view from the big lcd screen, easy remote settings, easy graphics operations on app and web, communications by WIFI, P2P, LAN, GPRS, RS485.

  • Load consumption monitoring Load consumption monitoring
  • IP65 protection IP65 protection
  • Power export limit Power export limit
  • Big LCD display Big LCD display
S1000-6000TL_

Smart Control Monitoring

Users can check 24-hour load consumption enabled Thinkpower monitoring solution . And built-in anti-backflow limit is available to controlexport power

  • 24hours loads consumption monitoring 24hours loads consumption monitoring
  • Power export limit Power export limit

    Model No                                                      S6000TL

    Input(DC)
    Max DC power (W)                                      7500W
    Max DC voltage (V)                                          500
    Min start voltage (V)                                   75/100
    MPPT voltage range(V)                             100~450
    Max. input current (A)                               13A/13A
    Max.input short circuit                              17A/17A
    Number of MPP trackers                                 2
    Strings per MPP tracker                                   1

    Output(AC)

    Nominal output power                              6000W
    Max. output power (W)                             6600W
    Nominal output voltage/range (V)    208,220,230,240/180~270
    AC grid frequency/range (Hz)            50Hz,60Hz(auto-selection)

    / 44Hz-55Hz; 54Hz-65Hz

    Max. output current(A)                                   26

    Model No                           S6000TL(Pro)       S8000TL            S10000TL

    Input(DC)
    Max DC power (W)            9000W                  12000W              15000W
    Max DC voltage (V)                                              550
    Min start voltage (V)                                          75/100
    MPPT voltage range(V)                                   100~500
    Max. input current (A)                                    28A/18A
    Max.input short circuit                                   40A/25A
    Number of MPP trackers                                     2
    Strings per MPP tracker                                     2/1

    Output(AC)

    Nominal output power     6000W                  8000W                10000W
    Max. output power (W)    6600W                   8800W                10500W
    Nominal output voltage/range (V)        208,220,230,240/140~310
    AC grid frequency/range (Hz)                50Hz,60Hz(auto-selection)

    / 44Hz-55Hz; 54Hz-65Hz

    Max. output current(A)         28                         38.5                      45.6

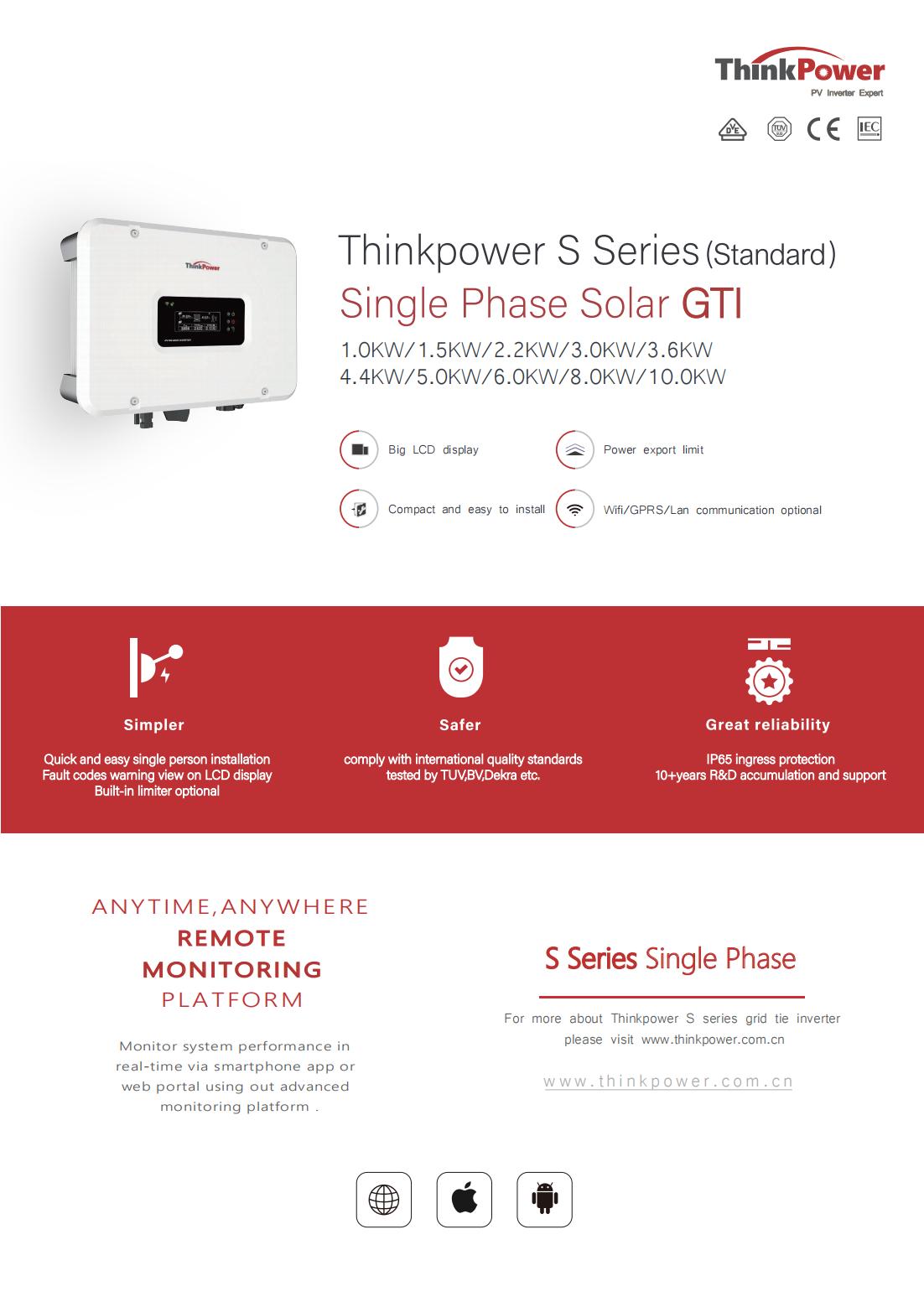

Thinkpower Catalogue S serie_1-10kw_00
Model No  S1000TL  S1500TL  S2200TL  S3000TL  S3600TL S4400TL S5000TL        S6000TL
Input(DC)
Max. DC power  1500W           2250W           3300W           4500W           5400W           6600W           7500W         7500W
Max. DC voltage(Vdc)
    450
            450
             500             500
             500
             500
            500
           500
Min System start/Shut down voltage (Vdc)
   65/75
          75/100
           75/100           75/100
          75/100
           75/100
          75/100
         75/100
MPPT voltage range(Vdc)  70~450         100~450         100~450         100~450         100~450         100~450         100~450       100~450
Max. input current(A)    13A             13A            13A             13A              13A         13A/13A         13A/13A       13A/13A
Max. short circuit current per MPPT    17A             17A            17A             17A              17A         17A/17A         17A/17A       17A/17A
Number of MPP trackers      1               1              1               1               1               2              2             2
Strings per MPP tracker                                                                                        1
Output (AC)
Nominal output power  1000W           1500W           2200W            3000W           3600W           4000W          5000W         6000W
Max. output power  1100W           1650W           2420W            3300W           3960W           4400W          5500W         6600W
Nominal output voltage/range (V)
       208,220,230,240/180~270
AC grid frequency/range          50/60Hz(auto-selection) / 44Hz-55Hz; 54Hz-65Hz
AC connection with PE Single Phase
Max output current(A)
       6                 8                12                 16                 16               21                23            26
Current distortion(THDi)
  ＜1.5%           ＜1.5%           ＜1.5%           ＜1.5%           ＜2.5%           ＜2.5%           ＜2.5%         ＜2.5%
Power factor
~1%(Adjustable from 0.8 leading to 0.8 lagging)
Efficiency
Maximum conversion efficiency   97.3%            97.3%            97.4%            97.5%            97.8%            97.8%            97.5%          97.6%
European efficiency   97.0%            97.0%            97.1%            97.2%            97.3%            97.3%            97.2%          97.3%
MPPT efficiency   99.9%            99.9%            99.9%            99.9%            99.9%            99.9%            99.9%          99.9%
Safety and protection
DC reverse-polarity protection yes
Anti-islanding / Overvoltage protection
 yes
Short circuit protection
 yes
Leakage current protection yes
Grid monitoring / Ground fault monitoring
 yes
DC/AC side SPD(thermally protected)
 yes
General Parameters
Dimensions                                      320/277/115mm                                                                  434/340/115mm
Weight                                               7kg                                                                                    8kg
Embedded DC Switch
 Optional
Night power consumption (W)
 ＜0.2
Isolation type
 Transformerless
Protection degree
IP65 according to IEC60529
Operating temperature range -25℃~+ 60℃
Cooling concept Smart Cooling
Operating Altitude (m)
<2000m without power derating
Acoustic noise level (dB)
 ＜25
Display Graphic LCD
Communication Interface
Standard WIFI; RS485 (optional)
Warranty
Standard 5 years; 7/10 years optional
Model No S6000TL(Pro)  S8000TL  S10000TL
Input(DC)
Max. DC power           9000W               12000W           15000W
Max. DC voltage(Vdc)
               550Vd.c.
Min System start/Shut down voltage (Vdc)
               75/100
MPPT voltage range(Vdc)             100~500V.d.c.
Max. input current(A)               28A/18A
Max. short circuit current per MPPT               40A/25A
Number of MPP trackers                   2
Strings per MPP tracker                                                    2/1
Output (AC)
Nominal output power           6000W               8000W            10000W
Max. output power           6600W               8800W            10500W
Nominal output voltage/range (V)
       208,220,230,240/140~310
AC grid frequency/range          50/60Hz(auto-selection) / 44Hz-55Hz; 54Hz-65Hz
AC connection with PE Single Phase
Max output current(A)
                28                  38.5                 47.7
Current distortion(THDi)
           ＜1.5%              ＜1.5%              ＜1.5%
Power factor
~1%(Adjustable from 0.8 leading to 0.8 lagging)
Efficiency
Maximum conversion efficiency               98.1%
European efficiency               97.5%
MPPT efficiency               99.9%
Safety and protection
DC reverse-polarity protection   yes
Anti-islanding / Overvoltage protection
   yes
Short circuit protection
   yes
Leakage current protection   yes
Grid monitoring / Ground fault monitoring
   yes
DC/AC side SPD(thermally protected)
   yes
General Parameters
Dimensions                                       468/374/127mm
Weight                                                11kg
Embedded DC Switch
       Optional
Night power consumption (W)
   ＜0.2
Isolation type
   Transformerless
Protection degree
IP65 according to IEC60529
Operating temperature range -25℃~+ 60℃
Cooling concept Smart Cooling
Operating Altitude (m)
<2000m without power derating
Acoustic noise level (dB)
 ＜25
Display Graphic LCD
Communication Interface
Standard WIFI; RS485 (optional)
Warranty
Standard 5 years; 7/10 years optional
