Thinkpower

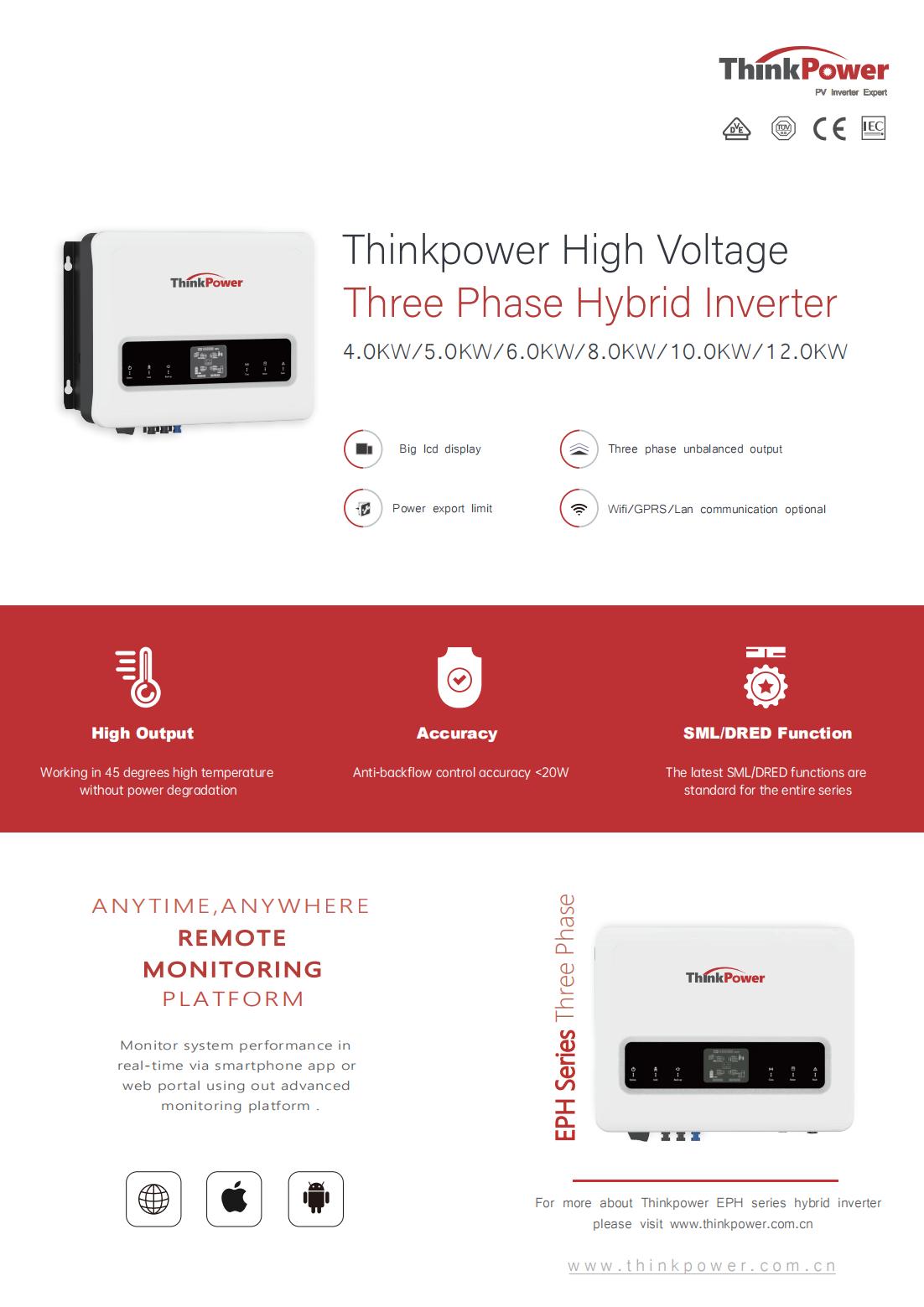

Thinkpower is a professional solar inverter manufacturer with 13 years R&D. EPH series 4kw to 12kw solar hybrid inverter is an ideal solution for solar energy storage, it boasts of top industrial level asymmetric three phase output, accurate power export limit and extremely low self power consumption. It is advantageously with clear display view from the big lcd screen, easy remote settings, easy graphics operations on app and web, communications by WIFI, P2P, LAN, GPRS, RS485.
-
Load consumption monitoring
-
Big LCD display
-
Power export limit
-
IP65 protection
Users can check 24-hour load consumption enabled Thinkpower monitoring solution . And built-in anti-backflow limit is available to control export power
-
24hours loads consumption monitoring
-
Power export limit
Model No EPH4KTL EPH5KTL EPH6KTL
Input(DC)
Max. DC power 6000W 7500W 9000W
Max. DC voltage 1000Vd.c
MPPT voltage range 200~850 Vd.c
Max. input current 13A/13A
Max.input short circuit 18A/18A
Number of MPP trackers 2
Strings per MPP tracker 1
Battery input
Battery type Li-Ion
Battery voltage range 130-700V
Maximum charge current 25/25A
Charge strategy for Battery Self-adaptation to BMS
Output (AC)
AC nominal power 4000W 5000W 6000W
Max AC apparent power 5000VA 5500VA 7000VA
Nominal AC output 8A 10A 12A
AC output range 50/60Hz; 280-490Vac(Adj)
Model No EPH8KTL EPH10KTL EPH12KTL
Input(DC)
Max. DC power 12000W 15000W 15000W
Max. DC voltage 1000Vd.c
MPPT voltage range 200~850 Vd.c
Max. input current 13A/13A
Max.input short circuit 18A/18A
Number of MPP trackers 2
Strings per MPP tracker 1
Battery input
Battery type Li-Ion
Battery voltage range 130-700V
Maximum charge current 25/25A
Charge strategy for Battery Self-adaptation to BMS
Output (AC)
AC nominal power 8000W 10000W 12000W
Max AC apparent power 8800VA 11000VA 13200VA
Nominal AC output 15A 17A 20A
AC output range 50/60Hz; 280-490Vac(Adj)
| Model No | EPH4KTL | EPH5KTL | EPH6KTL | EPH8KTL | EPH10KTL | EPH12KTL | |
| Input(DC) | |||||||
| Max. DC power | 6000W | 7500W | 9000W | 12000W | 15000W | 15000W | |
| Max. DC voltage | 1000Vd.c | ||||||
| MPPT voltage range | 200~850 Vd.c | ||||||
| Max. input current | 13A/13A | ||||||
|
Max.input short circuit per MPPT
|
18A/18A | ||||||
| Number of MPP trackers | 2 | ||||||
| Strings per MPP tracker | 1 | ||||||
| Battery input | |||||||
| Battery type | Li-Ion | ||||||
| Battery voltage range | 130-700V | ||||||
| Maximum charge/discharge current | 25/25A | ||||||
| Charge strategy for Li-tou Battery | Self-adaptation to BMS | ||||||
| Output (AC) | |||||||
| AC nominal power | 4000W | 5000W | 6000W | 8000W | 10000W | 12000W | |
| Max AC apparent power | 5000VA | 5500VA | 7000VA | 8800VA | 11000VA | 13200VA | |
| Nominal AC output | 8A | 10A | 12A | 15A | 17A | 20A | |
| AC output range | 50/60Hz; 280-490Vac(Adj) | ||||||
| Power factor | 0.8 leading ...0.8 lagging | ||||||
| Harmonics | <3% | ||||||
| Grid type | 3W/N/PE | ||||||
| Three-phase unbalance output | 100% | 80% | |||||
| AC Output(Back up) | |||||||
| Max AC apparent power | 4000VA | 5000VA | 6000VA | 8000VA | 10000VA | 12000VA | |
| Norminal output voltage | 400/380V | ||||||
| Norminal output frequency | 50/60Hz | ||||||
| Output THDV(@Liuear Load) | <3% | ||||||
| Efficiency | |||||||
| Maximum conversion efficiency | 98.0% | 98.0% | 98.2% | 98.2% | 98.2% | 98.2% | |
| European efficiency | 97.3% | 97.3% | 97.5% | 97.5% | 97.5% | 97.5% | |
| MPPT efficiency | 99.9% | 99.9% | 99.9% | 99.9% | 99.9% | 99.9% | |
| Safety and protection | |||||||
| DC reverse-polarity protection | yes | ||||||
| DC breaker | yes | ||||||
| DC/AC SPD | yes | ||||||
| Leakage current protection | yes | ||||||
| Insulation impedance Dectection | yes | ||||||
| Residual current protection | yes | ||||||
| Output short circuit protection | yes | ||||||
| Battery reverse connection protection | yes | ||||||
| General Parameters | |||||||
| Dimensions | 516/427/184mm | ||||||
| Weight | 26kg | ||||||
| Operating temperature range | -25℃... 60℃ | ||||||
| Degree of protection | IP65 | ||||||
| Cooling concept | Natural convection | ||||||
| Topology | Transformerless | ||||||
| Display | LCD | ||||||
| Humidity | 0-95%, no condensation | ||||||
| Communication |
Standard WiFi;GPRS/LAN(optional)
|
||||||
| BMS communication | CAN/ RS485 | ||||||
| Meter communication | RS485 | ||||||
| Warranty |
Standard 5 years; 7/10 years optional
|
||||||
