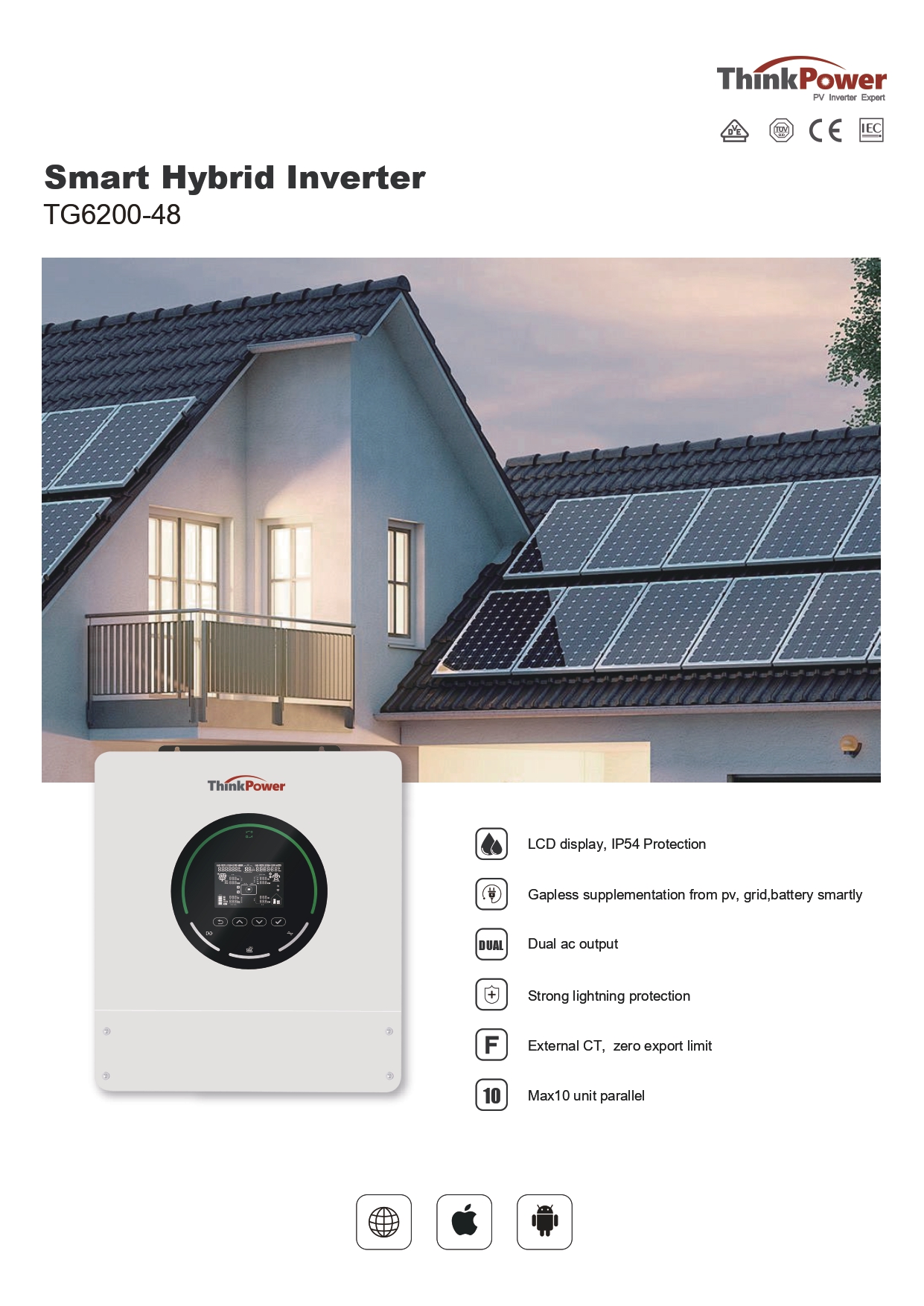

Thinkpower
IP54 Ingress Protection
Parallel Operation Up to 10 Units
Compatible with Lead-acid & Lithium Batteries
Charging & Discharging Efficiency up to 94%
High Temperature Resistance & Surge Protection
PCBA detachable design, easy maintenance
Optional External CT, Unlimited Load
-
Washable Cover
-
External CT
-
Washable Metal Dust Cover
-
max 10 unit parallel
Washable Metal Dust Cover (IP54 Rated)
IP54 protection with a special filter,
zero maintenance cost,
specially designed for harsh dusty environments.
Enlarged heat sink and fan, 20%increase in air volume, unique heat dissipation design, no output power reduction at 60°Cambient temperature(longer life span of components), more efficient heat dissipation
-
Washable Cover

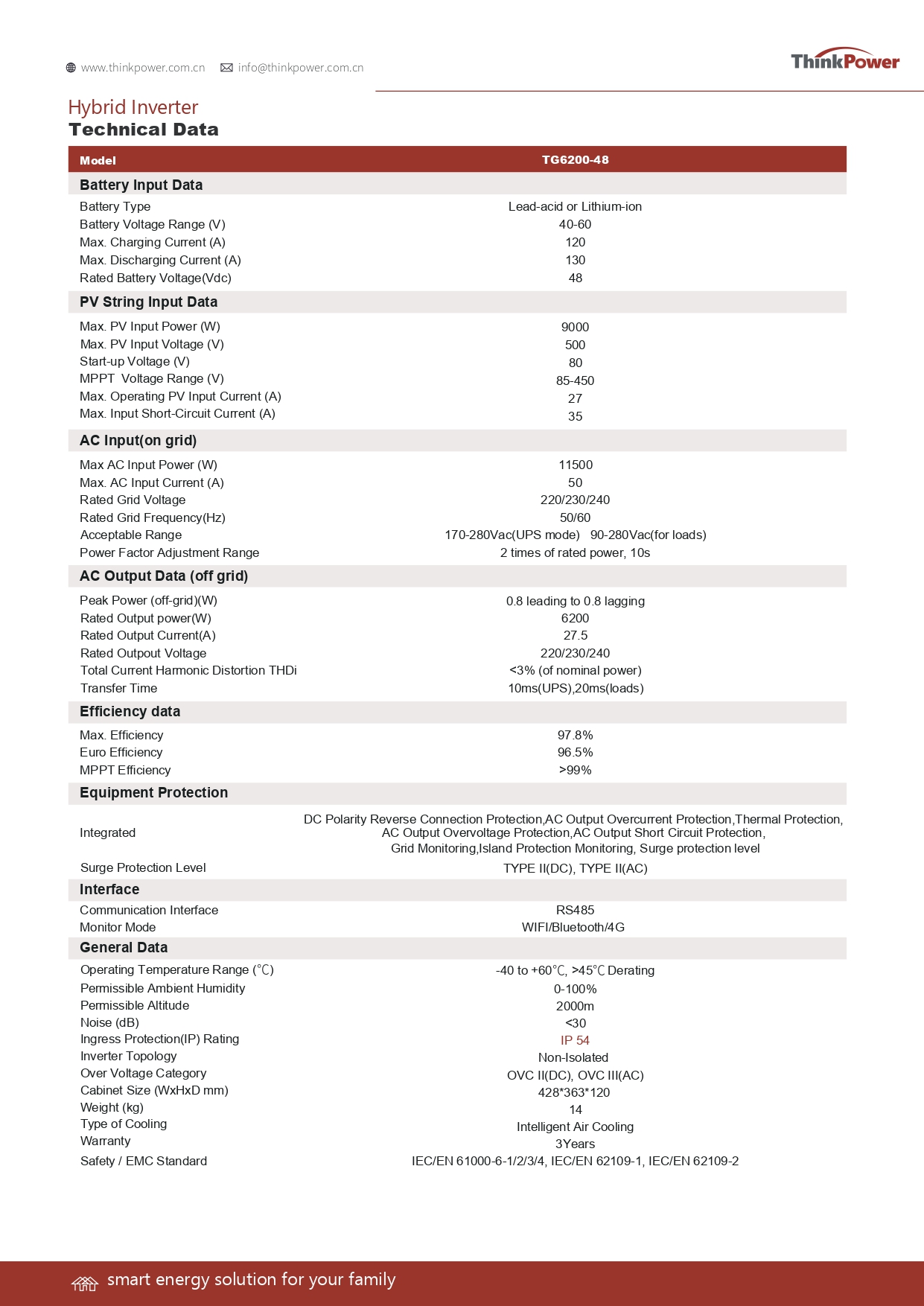

Battery Input Data
Battery Type: Lead-acid or Lithium-ion
Battery Voltage Range (V): 40-60
Max. Charging Current (A): 120
Max. Discharging Current (A): 130
Rated Battery Voltage(Vdc): 48
PV String Input Data
Max. PV Input Power (W): 9000
Max. PV Input Voltage (V): 500
Start-up Voltage (V): 80
MPPT Voltage Range (V): 85-450
Max. Operating PV Input Current (A): 27
Max. Input Short-Circuit Current (A): 35
