Thinkpower
Thinkpower is a professional solar inverter manufacturer with 15 years R&D, S series 1kw-10kw inverter is a compact residential solar grid connected inverter specifically designed to bring comfort and enjoyment as well as high efficiency to households. It is advantageously with clear display view from the big lcd screen, easy remote settings, easy graphics operations on app and web, communications by WIFI, P2P, LAN, GPRS, RS485.
-
Power-export-limit
-
IP65-protection
-
Big-LDC-display
-
Load-consumption-monitoring
Users can check 24-hour load consumption enabled Thinkpower monitoring solution . And built-in anti-backflow limit is available to controlexport power
-
24hours-loads-consumption-monitoring
-
Power export limit

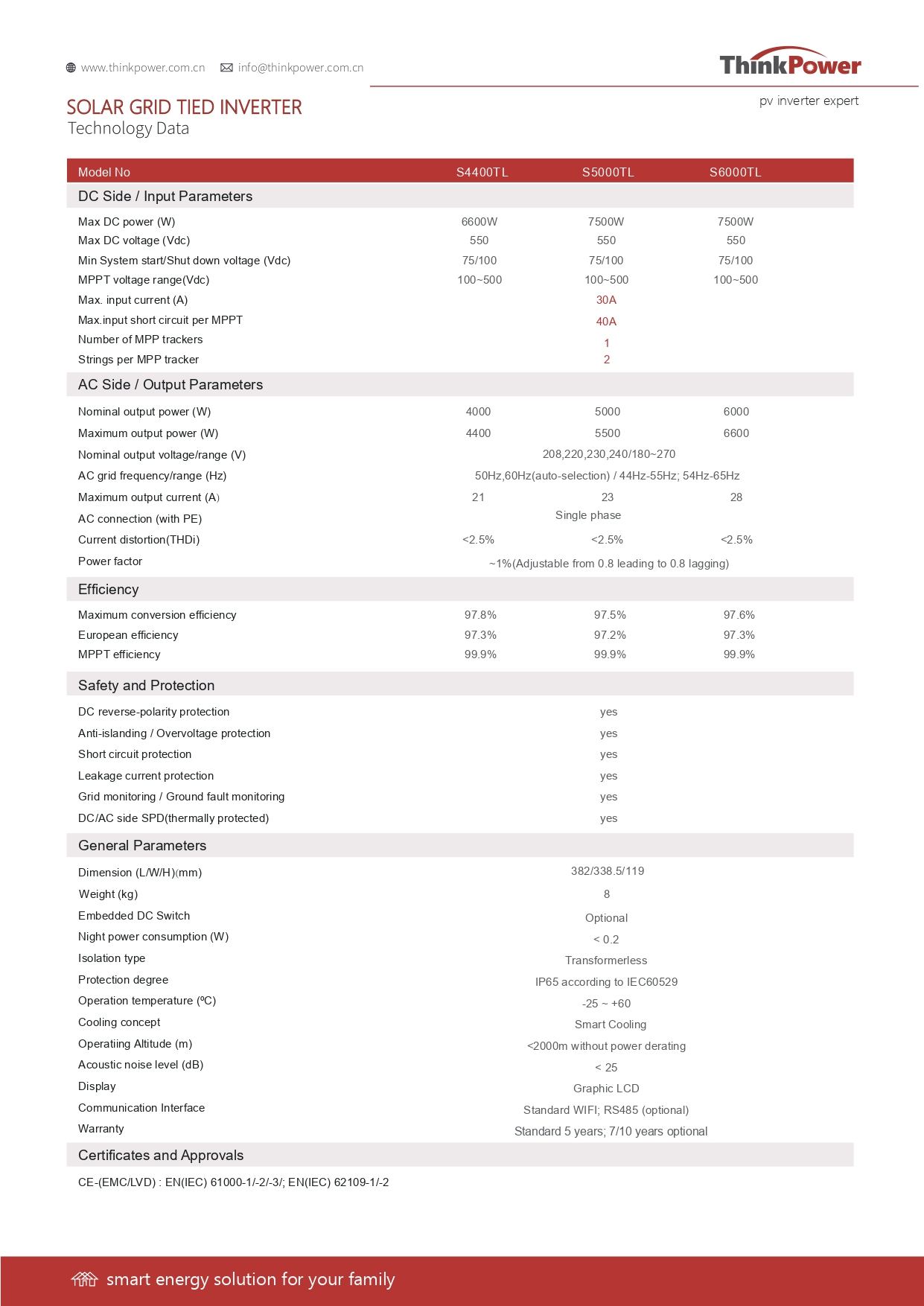

Model No S4400TL S5000TL S6000TL
Input(DC)
Max DC power (W) 6600W 7500W 7500W
Max DC voltage (V) 550 550 550
Min start voltage (V) 75/100 75/100 75/100
MPPT voltage range(V) 100~500 100~500 100~500
Max. input current (A) 30A
Max.input short circuit 40A
Number of MPP trackers 1
Strings per MPP tracker 2
Nominal output power 4000W 5000W 6000W
Max. output power (W) 4400W 5500W 6600W
Nominal output voltage/range (V) 208,220,230,240/180~270
AC grid frequency/range (Hz) 50Hz,60Hz(auto-selection)/44Hz-55Hz;54Hz-65Hz
Max. output current(A) 21 23 28
Choose according to your project needs
