Thinkpower
- ✅ 8-year standard warranty, no extra cost.
- ⚡ Inductor frequency doubling tech, better cost efficiency.

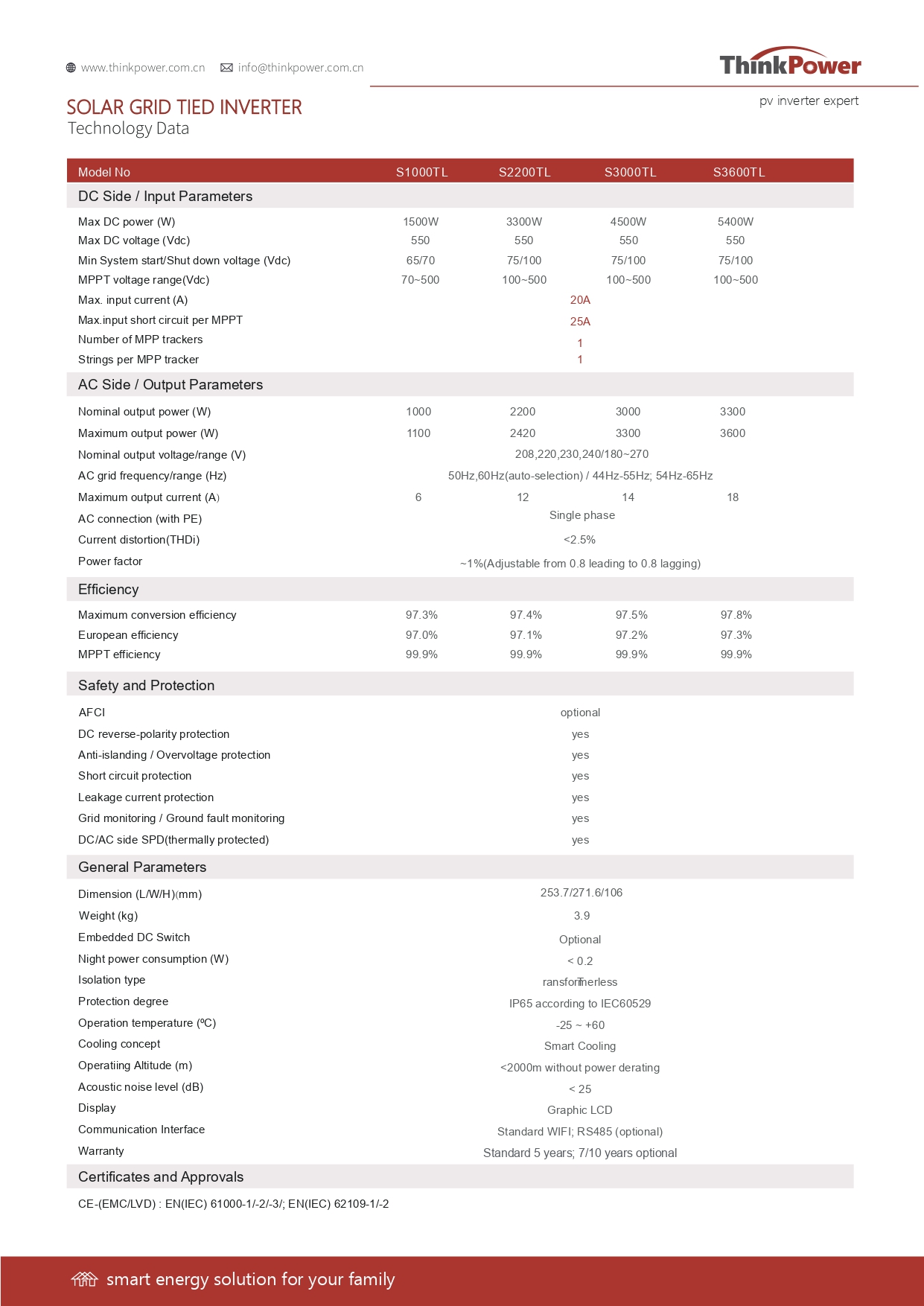

Model No S1000TL S2200TL S3000TL S3600TL
DC Side / Input Parameters
Max DC power (W) 1500W 3300W 4500W 5400W
Max DC voltage (Vdc) 550 550 550 550
Min System start/Shut down voltage (Vdc)
65/70 75/100 75/100 75/100 MPPT voltage range(Vdc) 70~500 100~500 100~500 100~500 Max. input current (A) 20A
Max.input short circuit per MPPT 25A
Number of MPP trackers 1
Strings per MPP tracker 1
AC Side / Output Parameters
Nominal output power (W) 1000 2200 3000 3300 Maximum output power (W) 1100 2420 3300 3600 Nominal output voltage/range (V)
208,220,230,240/180~270
AC grid frequency/range (Hz)
50Hz,60Hz(auto-selection) / 44Hz-55Hz; 54Hz-65Hz Maximum output current (A) 6 12 14 18
AC connection (with PE) Single phase
Current distortion(THDi) <2.5%
Power factor ~1%(Adjustable from 0.8 leading to 0.8 lagging)
